HeightSens - Laser Scanner – Excessive Height Warning System

HeightSens protects structures reliably against damage from high vehicles.

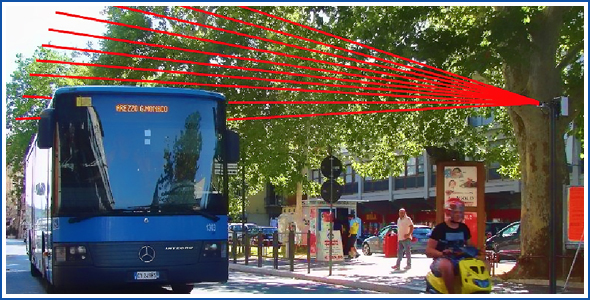

HeightSens protects tunnels and underpasses reliably against damage caused by excessively high vehicles. When mounted at the side of the road (centre image), the innovative laser sensor (top image) effectively monitors multiple lanes for any vehicle which exceeds the maximum height limit.

Dangerously high vehicles are detected by multiple metering fields, which must be crossed in order to trigger the alarm. Objects which do not meet the defined minimum height, or which cross only one beam, do not trigger the alarm. This prevents leaves, birds and similar objects from causing false alarms.


Horizontal metering laser scanner sensor with invisible infrared metering field

Roadside metering across up to three lanes

Freely definable metering fields and minimum object height provide optimum protection against false alarms

Technical Specifications ScanSens-X0

Technology: Laser scanner, time-of-flight measurement
Measurement range: 60 m @ 10% remission, 14m @ 2% remission
Number of metering levels: 4
Number of points per scan: 274
Angular resolution: 0.35°
Scan range: 96°
Number of scans per second: 60 scans / s
Remission factor: > 2%
Wavelength + output: 905 nm; max peak output power: 75 W
Power supply: 10 V - 35 V DCl
Power consumption: < 5 W
Outputs: 2 potential-free switch contacts
Max. switching voltage: 35 VDC / 24 VAC
Max. switching current: 80 mA
Response time: Typical: 20ms / maximum: 80ms
Dimensions: 140 mm x 140 mm x 80 mm
Material: Stainless steel
Colour: Metallic
Protection rating: IP65 (do not pressure-clean front)
Temperature range: -30 °C to +60 °C with power / -10 °C to +60 °C without power
Humidity: 0-95 % non-condensing
Shock value: < 2 G
Pollution level: max. 30 %; homogeneous
Designed for minimum lifespan: Designed for a minimum lifespan of 8 years
Standards: 2006/95/EC: LVD 2002/95/EC: RoHS;
EN 61000-6-2: EMC - Industrial level; 2004/108/EC: EMC
EN 60529; EN IEC 60825; EN 60950-1;
EN 61000-6-3: EMC - Commercial level
